Floral Pattern Printed PPGI Coated Steel Coil HY145

Wooden / Marble / Flower designs are beautiful for decoration and making metal box and furniture, etc.

Details

PRODUCT INDEX

BASE MATERIAL	HDGI HDGL
THICKNESS	0.23-0.8mm
WIDTH	914-1250mm
INTERNAL DIAMETER	508mm
WEIGHT	3-7TON
PAINT	PE/PVDF
STRUCTURE	TOP 2/BACK 1

PERFORMANCE INDICATORS

TEST ITEM	TOP	BACK
PAINT THICKNESS	>5+18	5-7
GLOSSY	high 70±5/middle50土5/low30±5	35±5
COATING HARDNESS	≥H	≥H
T BELT	≤3T	≤4T
IMPACT RESISTANCE	≥9J	≥6J
DISSOLVENT RESISTANCE	≥100	≥50
SALT SPAY TEST	≥720hr
ACID RESISTANCE	SOAKED IN 5% HCL SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF
ALKALI RESISTANCE	SOAKED IN 5% NAOH SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF

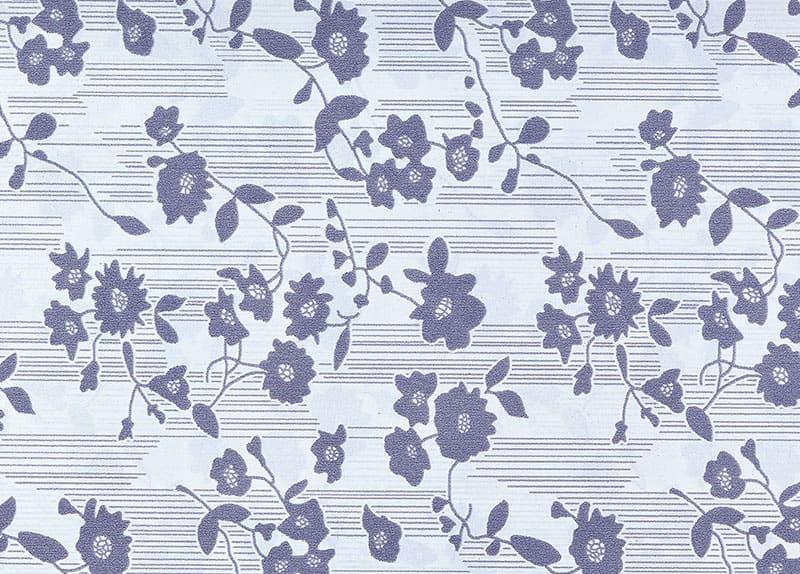

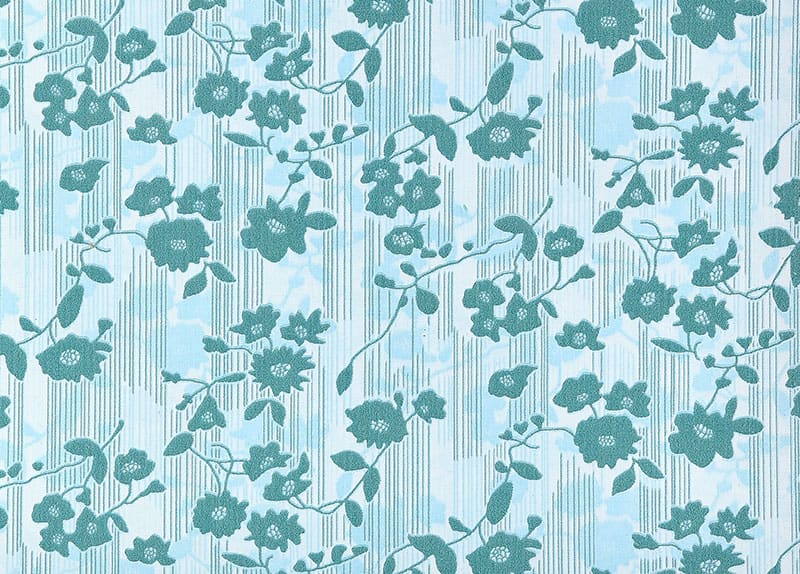

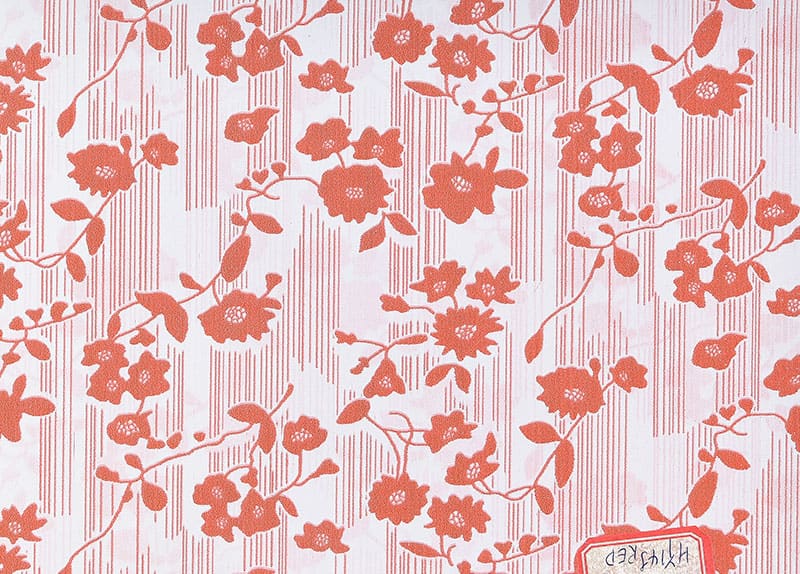

Floral Pattern: The product has a beautiful floral pattern printed on the surface, which gives it a unique decorative effect.
Weather Resistance: It uses high-quality PE or PVDF coating, has excellent weather resistance, and can keep bright colors for a long time.
Corrosion Resistance: The hot-dip galvanized or hot-dip aluminum-zinc substrate combined with high-quality coating gives it excellent corrosion resistance.
Processing Performance: Good mechanical properties and easy processing, suitable for various complex molding processes.
Environmental Friendly: It meets environmental standards, does not contain harmful substances, and does not pollute the environment.
Application Fields:

Architectural decoration: roofs, walls, partitions, etc.
Furniture manufacturing: wardrobes, cabinets, etc.
Home appliance industry: refrigerators, air conditioner shells, etc.
Others: billboards, display boards, etc.
This product not only has excellent physical and chemical properties, but also because of its unique pattern, it is widely used in various occasions that require beauty and durability.
