BASE MATERIAL |
HDGI HDGL |
|
THICKNESS |
0.23-0.8mm |
|
WIDTH |
914-1250mm |
|
INTERNAL DIAMETER |
508mm |
|
WEIGHT |
3-7TON |
|
PAINT |
PE/PVDF |
|
STRUCTURE |
TOP 2/BACK 1 |
|
TEST ITEM |
TOP |
BACK |
|
PAINT THICKNESS |
>5+18 |
5-7 |
|
GLOSSY |
high 70±5/middle50土5/low30±5 |
35±5 |
|
COATING HARDNESS |
≥H |
≥H |
|
T BELT |
≤3T |
≤4T |
|
IMPACT RESISTANCE |
≥9J |
≥6J |
|
DISSOLVENT RESISTANCE |
≥100 |
≥50 |
|
SALT SPAY TEST |
≥720hr |
|
|
ACID RESISTANCE |
SOAKED IN 5% HCL SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF |
|
|
ALKALI RESISTANCE |
SOAKED IN 5% NAOH SOLUTION FOR 300HR WHITHOUT BLISTERING, COLOR FADING AND COATING PEEL-OFF |
|

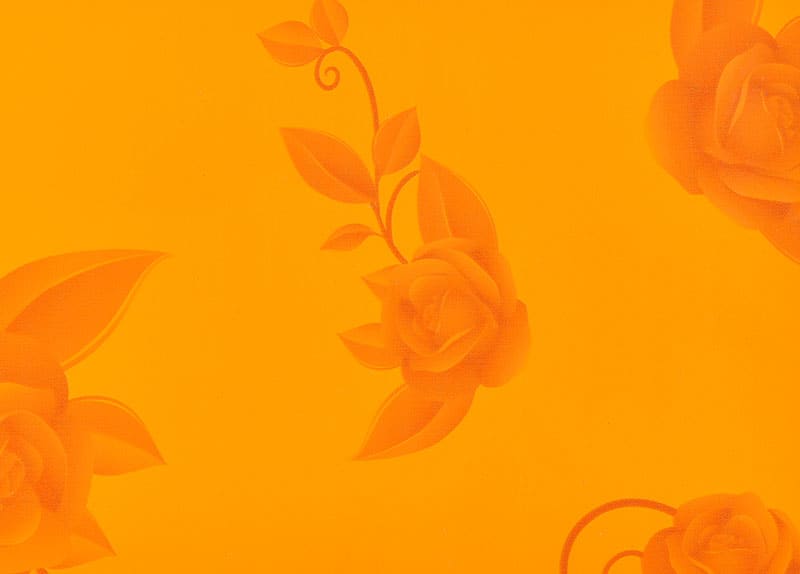

The paint of PRINTED PPGI COIL TNF022YP is PE and PVDF.PVDF (Polyvinylidene Fluoride) is a thermoplastic polymer that is known for its excellent weather resistance, high chemical resistance, and good UV resistance. It is widely used as a coating material for PPGI coils used in outdoor applications because of its excellent weather resistance.The combination of PE and PVDF coating creates a product that is highly resistant to weathering, UV radiation, and chemicals. It also provides a durable and long-lasting finish with a wide range of colors and patterns. PE is known for its good weather resistance, excellent impact strength and low cost and PVDF is known for its excellent weather resistance, high chemical resistance, and good UV resistance. Together they create a coating that is highly resistant to a wide range of environmental factors, making it suitable for both indoor and outdoor applications.
